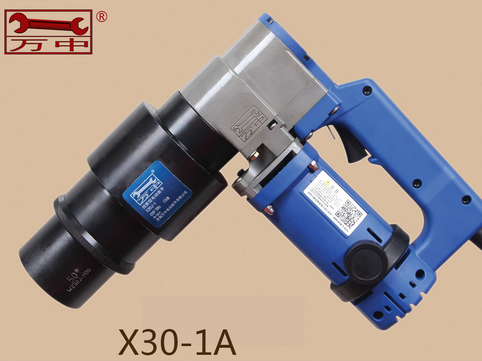

扭矩扳手又叫力矩扳手、扭力扳手、扭矩可調扳手，是扳手的一種，一般分為三類：手動力矩扳手、氣動扭力扳手和電動力矩扳手。定扭扳手廣泛用于對擰緊工藝有嚴格要求的裝配線，使產品各個緊固件扭矩值一致，生產出來的產品質量有保障。
Torque wrench, also known as torque wrench, torque wrench, torque adjustable wrench, is a kind of wrench, generally divided into three categories: hand power moment wrench, pneumatic torque wrench and electric torque wrench. Fixed-twist wrench is widely used in assembly line which has strict requirements for tightening process, so that the torque values of each fastener of the product are consistent, and the quality of the products produced is guaranteed.
扭矩扳手（扭力扳手）發出卡塔聲音的原理很簡單，可以分為以下幾個步驟去理解：
The principle of the torque wrench (torque wrench) to emit the CATA sound is very simple. It can be understood in the following steps:
1、扭矩扳手在發出“卡塔”聲后是提示已達到你要求的扭矩值了；2、扭矩扳手所發出的“卡塔”是由本身內部的扭矩釋放結構產生的，其結構分為壓力彈簧、扭矩釋放關節、扭矩頂桿三結構所組成.
1. Torque wrench is prompted to reach the required torque value after it emits the "kata" sound. 2. The "kata" emitted by the torque wrench is generated by its internal torque release structure, which is composed of three structures: pressure spring, torque release joint and torque ejector rod.
3、在扭矩扳手上設定所需扭矩值（由彈簧套在頂桿上向扭矩釋放關節施壓），鎖定扭矩扳手，開始擰緊螺栓。當螺栓達到扭矩值（當使用扭力大于彈簧的壓力）后，會產生瞬間脫節的效應。在產生脫節效應的瞬間發出關節敲擊，扳手金屬外殼所發出的“卡塔”聲。由此來確認達到扭矩值的提醒作用(其實就象我們手臂關節成15度彎曲放在鐵管里瞬間申直后會碰到鋼管的原理一樣）。
3. Firstly, the required torque value is set on the torque wrench (pressure is released from the joint by the spring sleeve on the ejector rod), the torque wrench is locked, and the bolt is tightened. When the bolt reaches the value of torque (when the use of torque is greater than the spring pressure), it will produce the effect of instantaneous disconnection. At the moment of disjointing effect, it emits joint tapping and "kata" sound from wrench metal shell. This confirms the reminder effect of reaching the torque value (in fact, it's just like the principle that when we bend our arm joints 15 degrees in the iron pipe and straighten it instantly, we will meet the steel pipe).
以上所說是比較常用的手動扭力扳手，除此之外還有電動扭力扳手、風動扭力扳手等。
Above is the most commonly used manual torque wrench, in addition to electric torque wrench, pneumatic torque wrench and so on.
現階段分為機械音響報警式,數顯式,指針式(表盤式),打滑式(自滑轉式).其中機械音響報警式,采用杠桿原理,當力矩到達設定力矩時會出現"嘭扭矩扳手"機械相碰的聲音,此后扳手會成為一個死角,及相當于呆扳手,如再用力,會出現過力現象.
At present, it is divided into mechanical sound alarm type, digital display type, pointer type (dial type), sliding type (self-sliding type). Among them, mechanical sound alarm type adopts lever principle, when the moment reaches the set moment, there will be the sound of mechanical collision of "thumping torque wrench". Thereafter, the wrench will become a dead angle and equivalent to a dull wrench, if used again, there will be over-force phenomenon.
數顯式和指針式(表盤式)差不多,都是把作用力矩可視化.現階段的數顯和指針都是在機械音響報警式扭矩扳手的基礎上工作的.
Digital display and pointer (dial type) are similar in that they visualize the moment of action. At present, both digital display and pointer work on the basis of mechanical sound alarm torque wrench.
打滑式(自滑轉式)采用過載保護、自動卸力模式,當力矩到達設定力矩時會自動卸力(同時也會出現機械相碰的聲音),此后扳手自動復位,如再用力,會再次打滑,不會出現過力現象.此種是比較近1,2年才出現的新感念產品.
Sliding type (self-slipping type) adopts overload protection and automatic unloading mode. When the moment reaches the set moment, it will unload automatically (and there will also be the sound of mechanical collision). After that, the wrench will automatically reset. If the wrench is used again, it will slip again, and there will be no over-force phenomenon. This is a new concept product which has only appeared in the last 1 or 2 years.
機械音響報警式是目前市場的主流產品,主要體現在價格便宜,其它3種相對來說,價格昂貴.不過由于各行各業對這方面要求越來越高,以及效率的要求,數顯式、指針式(表盤式)及打滑式(自滑轉式)的需求會越來越高.
Mechanical audio alarm is the mainstream product in the market, mainly reflected in the low price, the other three are relatively expensive. However, due to the increasingly high demand for this aspect and efficiency in all walks of life, the demand for digital display, pointer type (dial type) and sliding type (self-sliding type) will become higher and higher.
