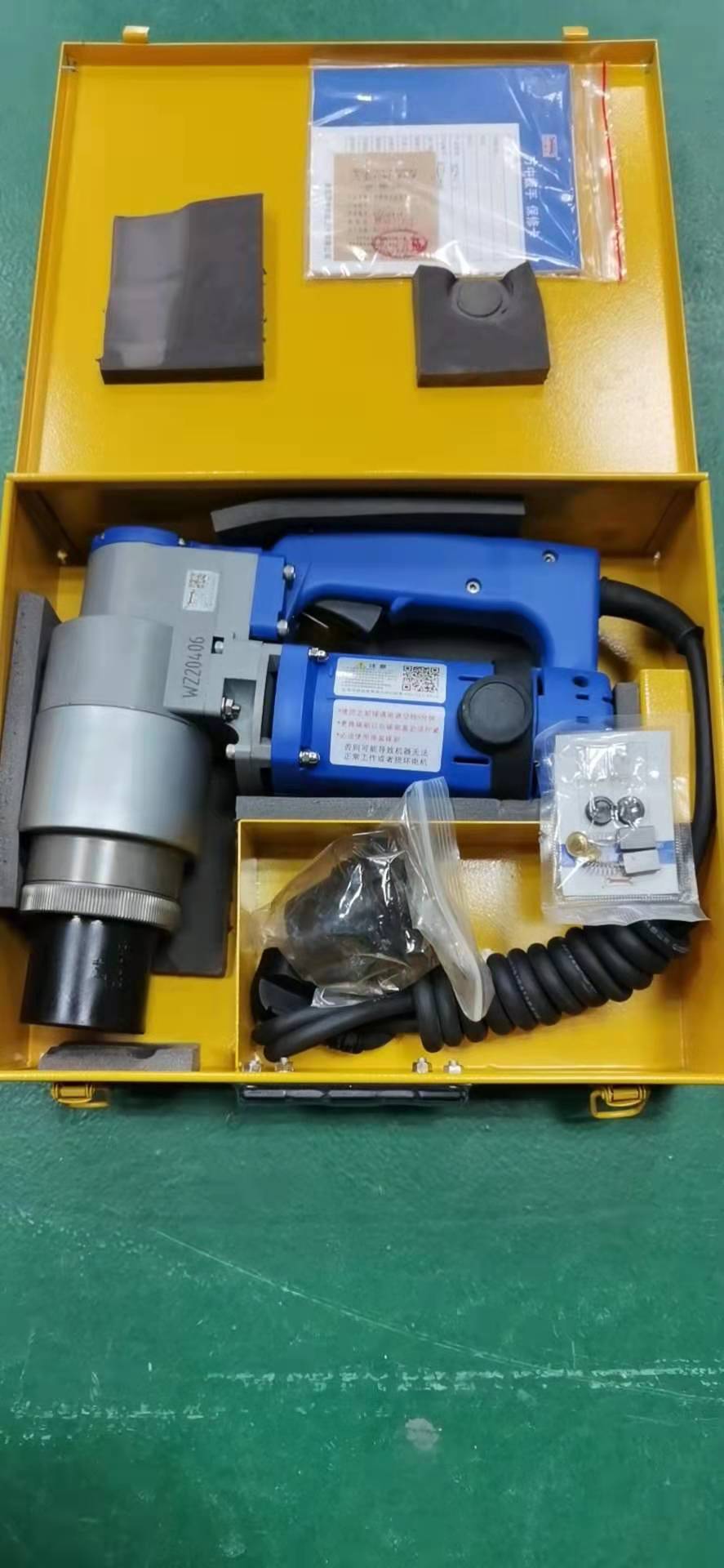

扭剪扳手主要是終緊扭剪型高強螺栓的，它的目的就是把扭剪型高強螺栓的梅花頭打斷即可。工作時將扳手頭對準螺栓頭，扣動開關即可開始工作，幾秒后，螺栓梅花頭將被扭斷，然后抽出扳手扣動扳機將梅花頭彈出，即結束工作。
The torsion shear wrench is mainly used to finally tighten the torsion shear high-strength bolt. Its purpose is to break the plum blossom head of the torsion shear high-strength bolt. When working, align the wrench head with the bolt head, pull the switch to start working. After a few seconds, the bolt plum blossom head will be broken, then pull out the wrench and pull the trigger to pop up the plum blossom head, that is, end the work.
電動扳手主要應用于鋼結構安裝行業，專門安裝鋼結構高強螺栓，高強度螺栓是用來連接鋼結構接點的，通常是用螺栓群的方式出現。高強螺栓可分為扭剪型和大六角型兩種，國標扭剪型高強螺栓為M16、M20、M22、M24四種，非國標的M27、M30兩種；國標大六角高強螺栓為M16、M20、M22、M24、M27、M30等幾種。一般的對于高強螺栓的緊固都要先初緊再終緊，而且每步都需要有嚴格的扭矩要求。大六角高強螺栓的初緊和終緊都建議使用定扭矩扳手.故各種電動扳手就是為各種緊固需要而來的。使用效果
Electric wrenches are mainly used in the steel structure installation industry to install high-strength bolts of steel structure. High strength bolts are used to connect steel structure joints, usually in the form of bolt groups. High strength bolts can be divided into torsion shear type and large hexagon type. There are four kinds of national standard torsion shear type high strength bolts: M16, M20, M22 and M24, and two kinds of non-national standard M27 and M30; The national standard large hexagon high-strength bolts are M16, M20, M22, M24, M27, M30, etc. Generally, the tightening of high-strength bolts should be first tightened and then finally tightened, and strict torque requirements are required in each step. The fixed torque wrench must be used for the initial tightening and final tightening of large hexagon high-strength bolts. Therefore, various electric wrenches are designed for various tightening needs. Use effect
沖擊電動扳手主要是初緊螺栓的，它的使用很簡單，就是對準螺栓扳動電源開關就行。電動扭剪扳手主要是終緊扭剪型高強螺栓的，它的使用就是對準螺栓扳動電源開關，直到把扭剪型
The impact electric wrench is mainly used to initially tighten the bolt. Its use is very simple. Just aim at the bolt and pull the power switch. The electric torsional shear wrench is mainly used to finally tighten the torsional shear type high-strength bolt. Its use is to align the bolt and pull the power switch until the torsional shear type
高強螺栓的梅花頭打斷為止。電動定扭矩扳手既可初緊又可終緊，它的使用是先調節扭矩，再緊固螺栓。電動轉角扳手主要也屬于定扭矩扳手的一種，它的使用是先調節旋轉度數，再緊固螺栓。電動角向扳手是一種專門緊固鋼架夾角部位螺栓的電動扳手，它的使用和電動扭剪扳手原理一樣。性能
Until the plum blossom head of high-strength bolt is broken. The electric constant torque wrench can be tightened initially and finally. Its use is to adjust the torque first and then tighten the bolts. Electric angle wrench mainly belongs to a kind of constant torque wrench. Its use is to adjust the rotation degree first, and then tighten the bolt. The electric angle wrench is an electric wrench specially used to fasten the bolts at the included angle of the steel frame. Its use principle is the same as that of the electric torsion shear wrench. performance
電動扭剪扳手顧名思義就是扭剪梅花頭螺栓擰緊作業的必備工具，幫助您裝、拆螺拴、螺母，同時能比較準確地控制擰緊扭矩。利用螺栓定扭矩，當扳手達到一定扭矩時即可剪斷螺栓的梅花頭部分，其扭矩精度和軸向拉力是靠螺栓的定扭矩V
As the name suggests, the electric torsion shear wrench is a necessary tool for the tightening operation of torsion shear Torx head bolts. It helps you install and remove bolts and nuts, and can accurately control the tightening torque at the same time. The fixed torque of the bolt is used. When the wrench reaches a certain torque, the plum blossom head of the bolt can be cut off. Its torque accuracy and axial tension depend on the fixed torque V of the bolt
型切口來保證的。拆裝扭力矩大、比手工更保險可靠。方便、美觀、實用、便于隨車攜帶。廣泛用于鋼結構橋梁、廠房、發電設備等設施的施工作業。
Type incision to ensure. The disassembly torque is large, which is safer and more reliable than manual. Convenient, beautiful, practical and easy to carry with the vehicle. It is widely used in the construction of steel structure bridges, plants, power generation equipment and other facilities.
