1、扭矩法
1. Torque method
依據扭矩M與預拉力成正比的閉系,先用一般扳手將螺帽發端擰緊,而后采取可顯現扭矩值的扳手擰至決定的扭矩值。
According to the closed system in which the torque M is proportional to the pretension, first tighten the nut with a general wrench, and then use a wrench that can show the torque value to the determined torque value.
2、轉角法
2. Angle method
依據板層間密切交觸后,高強度螺栓的轉化角度與螺栓的預拉力成正比閉系決定的一種方式。緊固時,先用短扳手將螺帽擰至沒有轉化的位子,而后再用長扳手將螺帽擰至決定位子,以到達預拉力。
According to the close contact between plates, the transformation angle of high-strength bolts is directly proportional to the pretension of bolts. When tightening, first screw the nut to the position without conversion with a short wrench, and then screw the nut to the decision position with a long wrench to reach the pre tension.
3、擰斷螺栓尾部
3. Unscrew the bolt tail

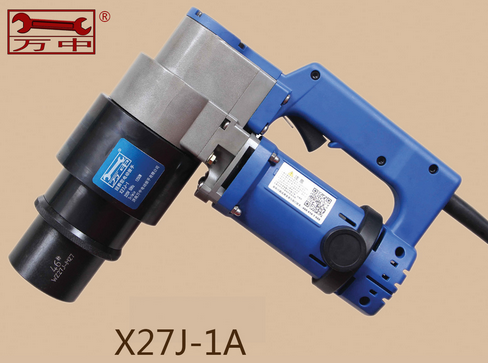

用于扭剪型高強度螺栓,此螺栓有一特制的尾部。緊固時,用扳手套住螺栓和螺栓尾部,一個套筒正轉,另一個套筒回轉,在螺帽擰緊到必定水平時,螺栓尾部擰斷。因為螺栓尾部的槽口深度是按擰斷扭矩和預緊拉力之間的閉系決定的,所以擰斷時便到達相應的預拉力值。
It is used for torsion shear high-strength bolt, which has a special tail. When tightening, use a wrench to cover the bolt and the bolt tail. One sleeve rotates forward and the other sleeve rotates. When the nut is tightened to a certain level, the bolt tail is broken. Because the notch depth at the tail of the bolt is determined by the close relationship between the screwing torque and the pre tensioning force, the corresponding pre tensioning force value will be reached when screwing off.
