電動扭剪扳手的一些常識介紹

Introduction to Some Common Sense of Electric Torsion Wrenches

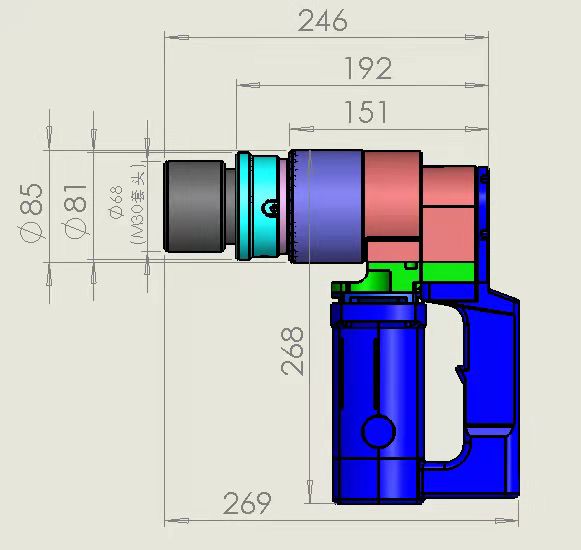

電動扭剪扳手廠家認為扭矩傳感器的設計對電動扳手的性能至關重要。當扳手頭旋轉時，不能將應變儀直接連接到扳手頭上，否則導線會纏繞在扳手頭上并滾落。如果使用其他轉軸扭矩傳感器，扳手體積大，成本高，精度低。因此，利用行星齒輪結構的特點，傳感器彈性體的一端通過輪齒與低速齒圈嚙合，另一端通過銷與殼體固定連接。然后，在彈性體上貼上應變片，感受齒圈的扭矩，使旋轉軸的扭矩測量轉化為固定軸的扭矩測量。

Electric torque wrench manufacturers believe that the design of torque sensors is crucial for the performance of electric wrenches. When the wrench head rotates, the strain gauge cannot be directly connected to the wrench head, otherwise the wire will wrap around the wrench head and roll off. If other shaft torque sensors are used, the wrench has a large volume, high cost, and low accuracy. Therefore, utilizing the characteristics of planetary gear structure, one end of the sensor elastomer is engaged with the low-speed gear ring through the gear teeth, and the other end is fixedly connected to the housing through a pin. Then, strain gauges are attached to the elastomer to sense the torque of the ring gear, converting the torque measurement of the rotating shaft into a torque measurement of the fixed shaft.

電動扭剪扳手廠家認為電動扳手主要由微電腦控制系統、步進電機、兩級行星齒輪機構、外殼、扭矩傳感器、扳手頭等組成。步進電機轉動時，帶動高速行星齒輪機構的中心輪轉動，該機構的另一個中心輪(齒圈)與殼體固定連接；扭矩通過拉桿傳遞給低速行星齒輪機構的中心輪，機構的另一個中心輪(齒圈)與傳感器連接，并通過傳感器固定在殼體上；同時，扭矩通過拉桿傳遞到扳手頭，擰緊螺栓。當?shù)退傩行驱X輪機構的齒圈(傳感器)與拉桿之間的扭矩關系確定后，通過監測傳感器的扭矩值就可以間接測得扳手頭的扭矩。微電腦控制系統采集傳感器的扭矩信號，經過處理后反饋給步進電機，從而控制扳手的扭矩和速度。

Electric torque wrench manufacturers believe that electric wrenches are mainly composed of microcomputer control systems, stepper motors, two-stage planetary gear mechanisms, casings, torque sensors, wrench heads, etc. When the stepper motor rotates, it drives the center wheel of the high-speed planetary gear mechanism to rotate, and the other center wheel (ring gear) of the mechanism is fixedly connected to the housing; The torque is transmitted to the center wheel of the low-speed planetary gear mechanism through the pull rod, and the other center wheel (ring gear) of the mechanism is connected to the sensor and fixed on the housing through the sensor; At the same time, torque is transmitted to the wrench head through the pull rod to tighten the bolt. After the torque relationship between the ring gear (sensor) and the pull rod of the low-speed planetary gear mechanism is determined, the torque of the wrench head can be indirectly measured by monitoring the torque value of the sensor. The microcomputer control system collects torque signals from sensors, which are processed and fed back to the stepper motor to control the torque and speed of the wrench.

電動扭剪扳手廠家認為電動扳手采用步進電機和行星齒輪機構，解決了動力傳遞和扭矩的動態檢測與控制問題。原理新穎，裝置可靠。扭矩傳感器靜態標定結果表明，傳感器輸出穩定，測量范圍內靈敏度高，線性誤差和彈性滯后小，滿足設計精度要求。

Electric torque wrench manufacturers believe that electric wrenches use stepper motors and planetary gear mechanisms to solve the dynamic detection and control problems of power transmission and torque. The principle is novel and the device is reliable. The static calibration results of the torque sensor indicate that the sensor output is stable, the sensitivity within the measurement range is high, the linear error and elastic hysteresis are small, and the design accuracy requirements are met.

電動扭剪扳手廠家認為在螺栓裝配中，為了保證螺栓連接的可靠性和疲勞強度，須適當控制螺栓連接的預緊力，這在很大程度上取決于扳手?jǐn)Q緊力矩的控制。電動扭矩扳手采用步進電機和行星齒輪驅動，克服了傳統氣動扳手轉速高、沖擊力大、扭矩不穩定的缺點，能夠準確監測螺栓的擰緊扭矩。已成為鋼結構等工程中不可缺少的電動工具之一。

Electric torque wrench manufacturers believe that in bolt assembly, in order to ensure the reliability and fatigue strength of bolt connections, it is necessary to appropriately control the pre tightening force of bolt connections, which largely depends on the control of the wrench tightening torque. The electric torque wrench is driven by a stepper motor and planetary gears, overcoming the shortcomings of traditional pneumatic wrenches such as high speed, large impact force, and unstable torque. It can accurately monitor the tightening torque of bolts. It has become one of the indispensable electric tools in steel structures and other engineering projects.
